FUJI Precision elevators are designed to provide safe, reliable, and comfortable transportation for passengers in residential, commercial, and public buildings. They come in a range of sizes, styles, and configurations to meet the specific needs of different buildings, including low-rise, mid-rise, and high-rise buildings.
We can manufacture MR passenger elevator, MRL passenger elevator and more. Chat Now!

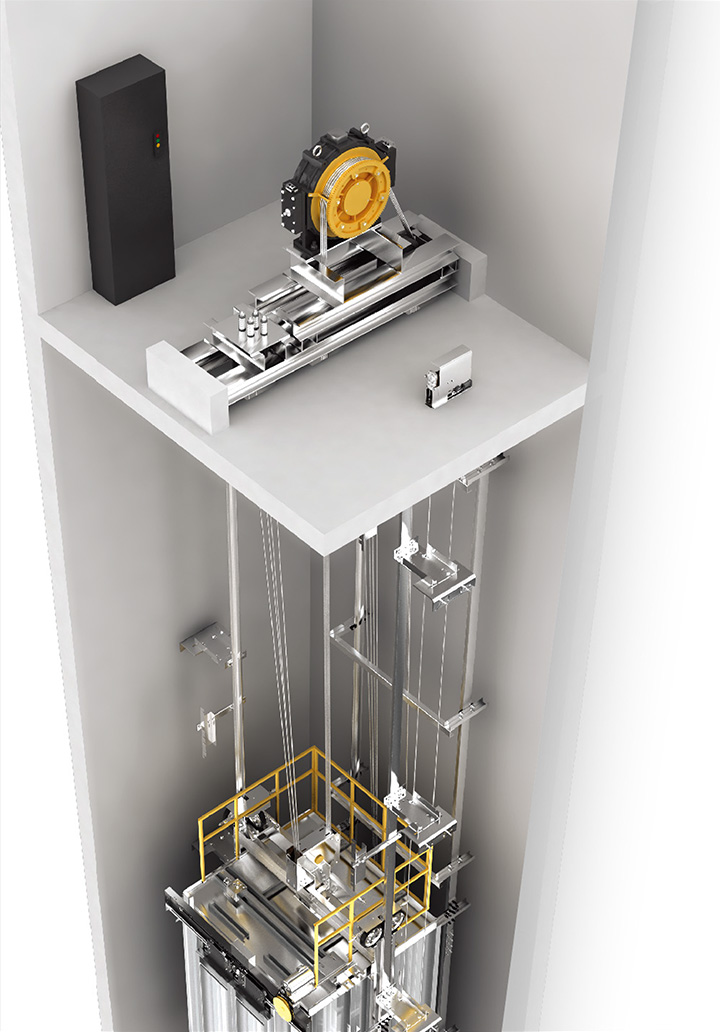

Small machine room elevator
The high -efficiency and low -speed permanent magnet synchronous gear traction machine is adopted. Compared with the gear elevator with the same load level, it saves 35%of energy.
Save space
In the design of the small machine room, the machine room is just the upward extension of the shaft, coupled with the specially designed small volume control cabinet, improves the space utilization rate, greatly saves the area of the machine room, and reduces the cost of building
Flexible design
The optimized design of the structure can be more flexible, free, and diverse, perfectly showing the architectural style.
Improve installation efficiency
The overall installation process is more convenient and fast. Whether it is initial or updated, it can be easily achieved.

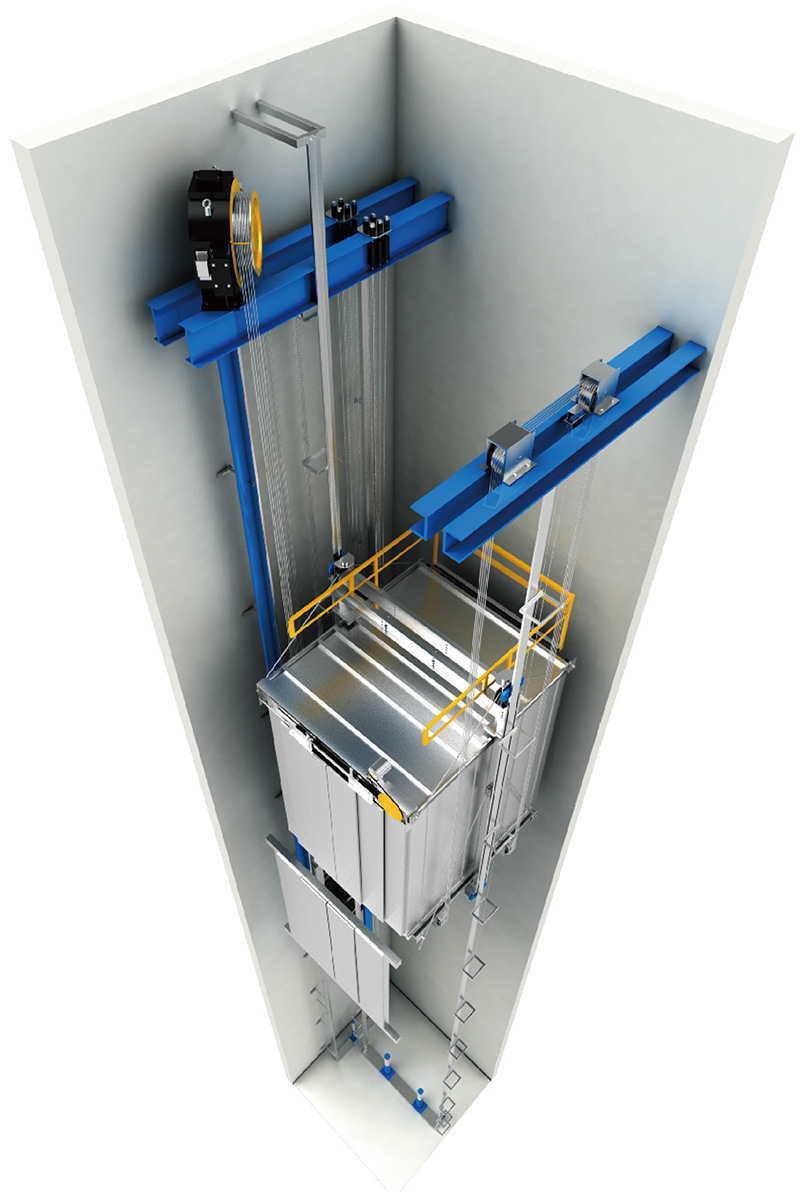

Machine Roomless elevator saving the machine room space on the top of the shaft, brings greater flexibility to the design of the building
Adopt advanced design concepts and mature control technology to provide more choices for small high -rise buildings. The machine roomless control system to optimizing the control algorithm and data structure, greatly improved the speed of computing, more stable and more efficient. Streamline the control system components, reduce the wiring of about 25% of the control system, and make the system integrate and modularize, and it is easier to install and test. Remove the redundant components of the control system, reduce the main faulty sources during the operation of the system, and significantly improve the reliability of the system operation.
Synchronous raceless traction machines for machine roomless are used, which greatly saving shaft space, excellent operation performance, and stronger power.

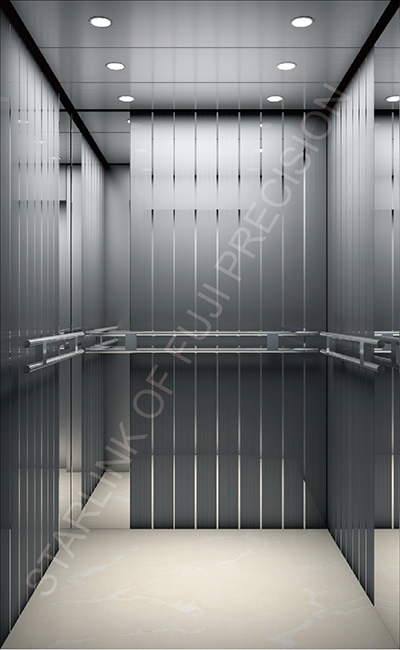

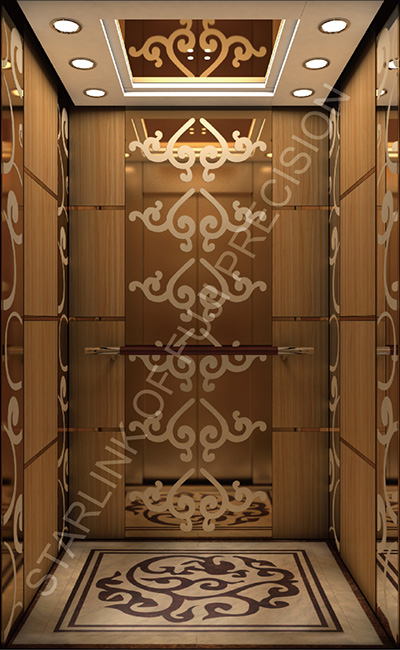

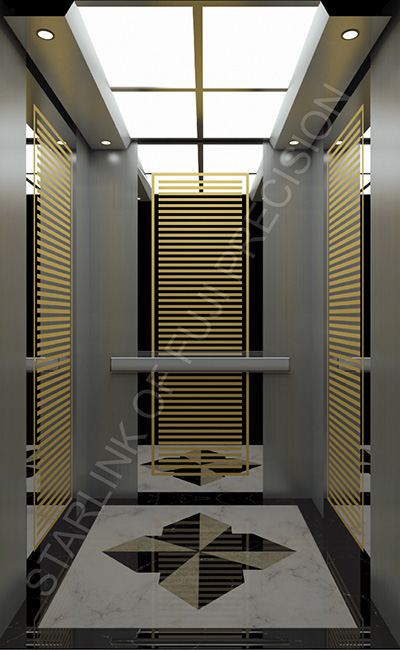

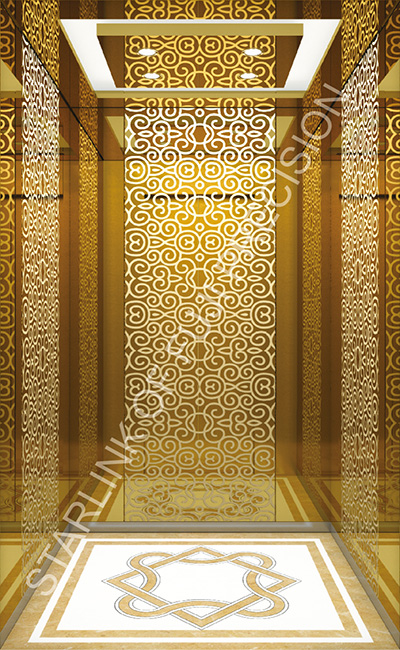

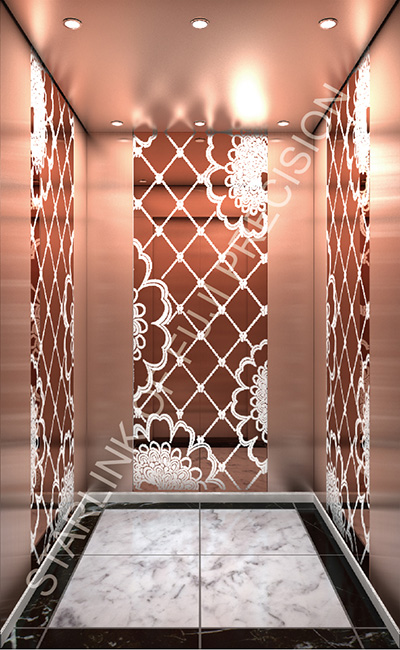

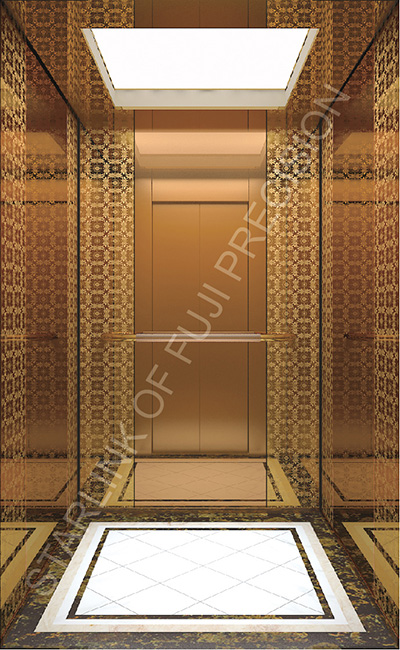

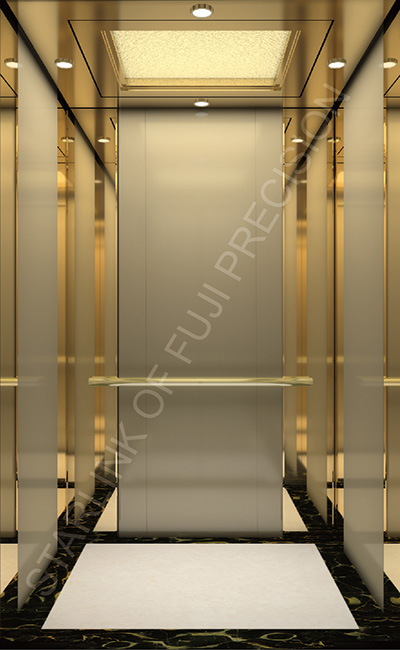

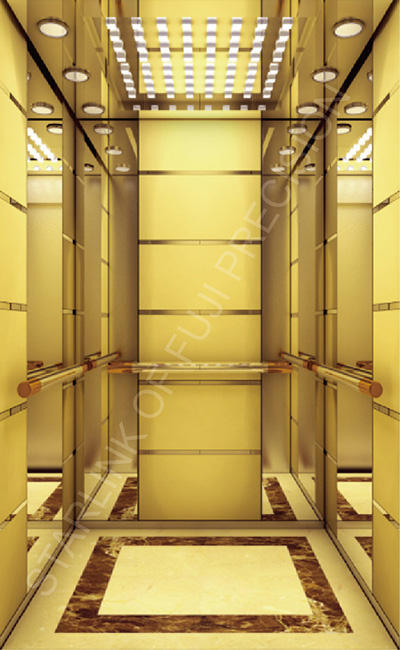

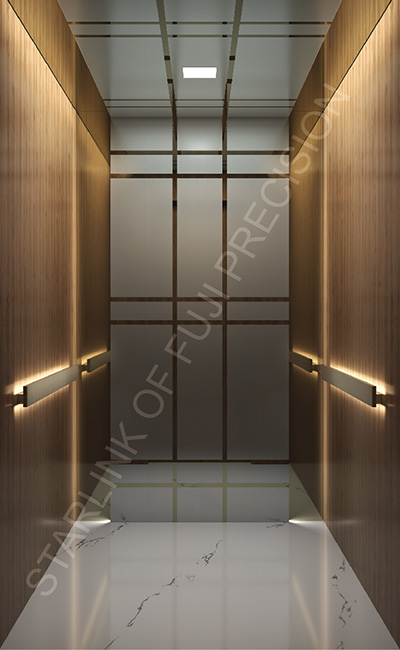

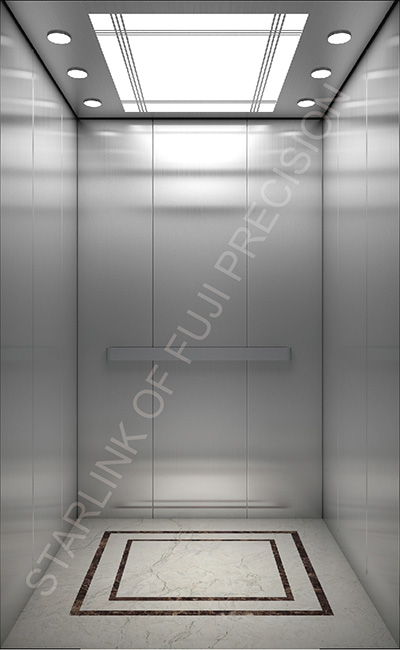

Signal system (COP、LOP、Basic type LED Dot Matrix、Picture type LCD display、Video type LCD display、Button etc) ; Landing door series(Painted steel color) ; Celiling series、Handrail、Floor etc , We provide diverse choices to you.
1. Increase the new national standard board UCMP to prevent the car from moving accidentally

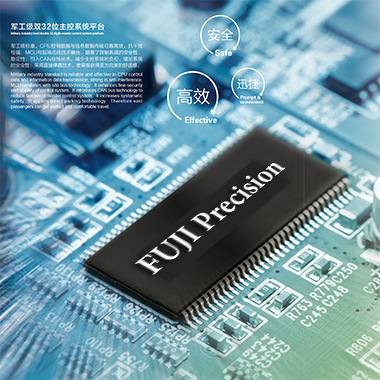

2. Integrated main control system, improve the degree of system integration, reduce the main faulty sources in the operation of the system, and make the system more reliable.
3. CANBUS+bus technology, the communication capacity and speed increased significantly, and the anti -interference ability is enhanced.

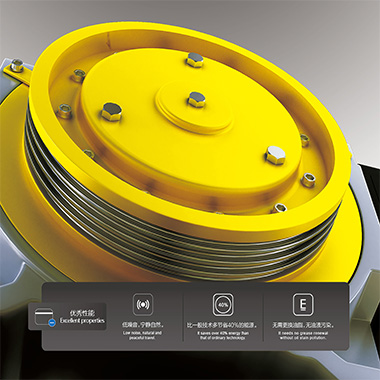

Permanent magnet synchronization gearless traction machine. It uses high -performance permanent magnet materials and special motor structures to fully integrate coaxial transmission technology, digital frequency conversion technology, high transmission efficiency, and low energy loss. High torque density design, optimized wheel groove design, improve ride comfort. High -loading design, large axis load, effectively reducing the running of the elevator abnormally jitter or noise, making the operation more stable. No bracket brake, fast response, high reliability.
The high -performance shock absorption material is applied between the traction machine host and the base, which significantly reduces the vibration generated by the traction machine through the wire rope to the car.

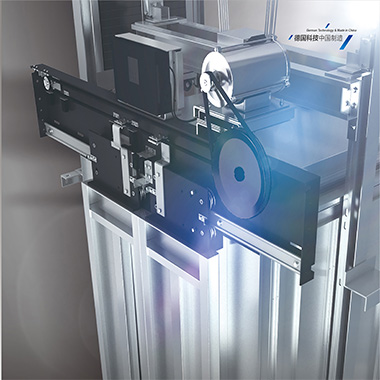

The permanent magnetic frequency portal configured by the elevator uses the latest stepless speed -controlled frequency -controlled door -drive system to control the opening and closing vector control, closed -loop vector control, real -time speed feedback, and the accuracy of speed regulation reaches 0.1%. The latest permanent magnet synchronous motor and the latest stepless speed regulating frequency -controlled door -driven system control, energy conservation reaches more than 60%. Enter a wide voltage belt design with 220V ± 20%input voltage, high adaptability. The main mechanical parts adopt standardized design, strict three -dimensional model construction, finite element analysis and other design verification. The mechanical structure and control system have passed the reliability testing, abnormal state test, and functional test verification of the component. Abnormal state testing, functional testing, and reliability test verification of 3 million operations ensure the reliability of the product. Unique obstacle point memory protection; door knife open/closed curve adjustment; synchronous/asynchronous door knife selection; slow shutdown door shutdown; encoder fault protection; clamping the detection torque optional function, etc. At the same time, the door machine has the characteristics of smooth operation, high comfort, and low noise.
